Manufacturing Standards:
- Design: API 6D, API 608, ISO 14313, ISO 17292
- Pressure-Temperature Rating: ASME B16.34
- Face to Face Dimension: ASME B16.10
- Flanged Ends: ASME B16.5 (UP TO 24”) ASME B16.47(ABOVE 26”)
- Butt Weld Ends: ASME B16.25
- Pressure Test: API 598, API 6D
Manufacturing Range:
- Rating: 150 Lbs. to 2500 Lbs.
- Size: 2" to 64"
- Applicable Temperature: -46℃ to 200℃, -29℃ to 560℃
Body Material:
- Carbon steel: ASTM A105, ASTM A350 LF2
- Stainless steel: ASTM A182 F304, F316, F304L, F316L, and ASTM A182 F6a
- Alloy steel: ASTM A182 F11, F22, F9

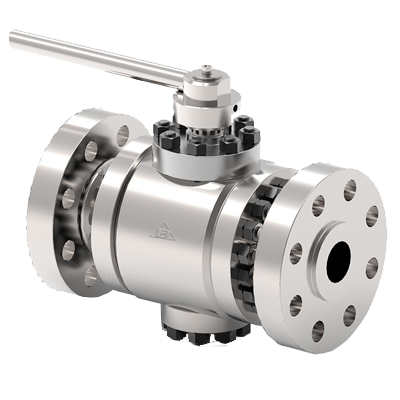

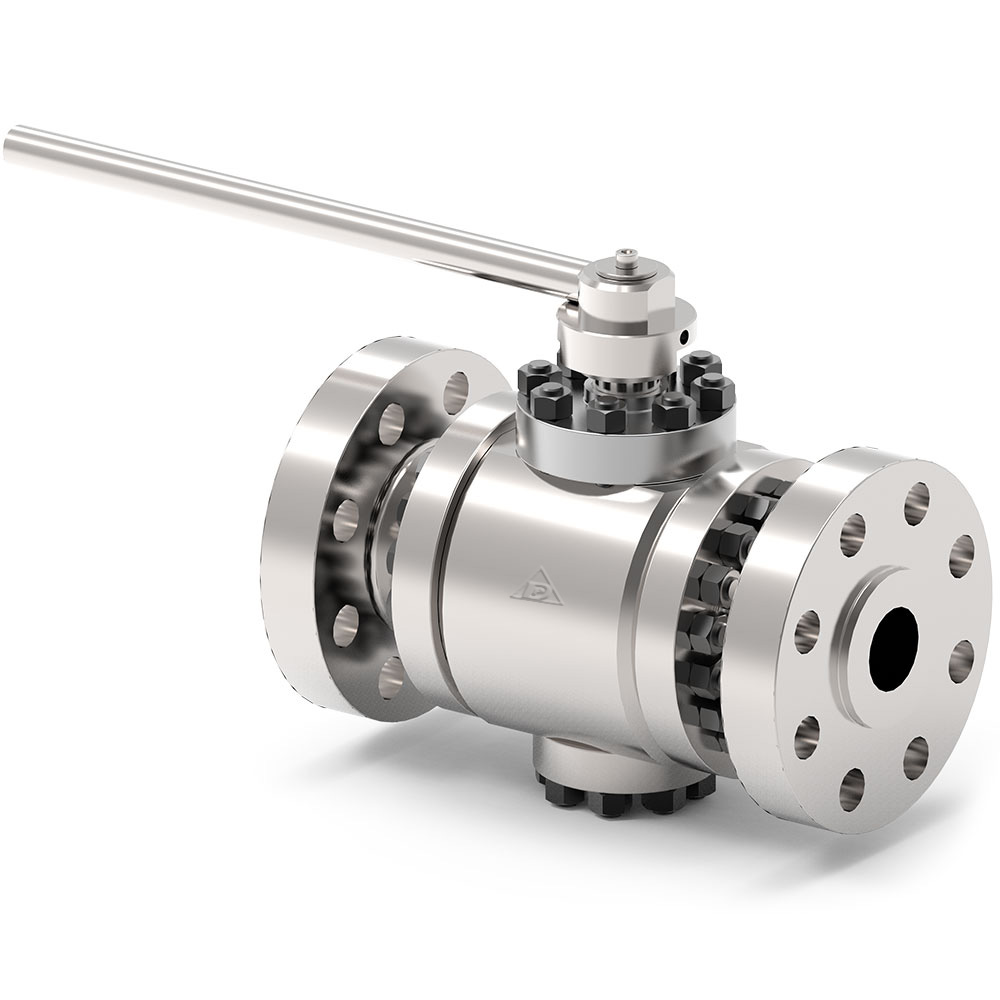

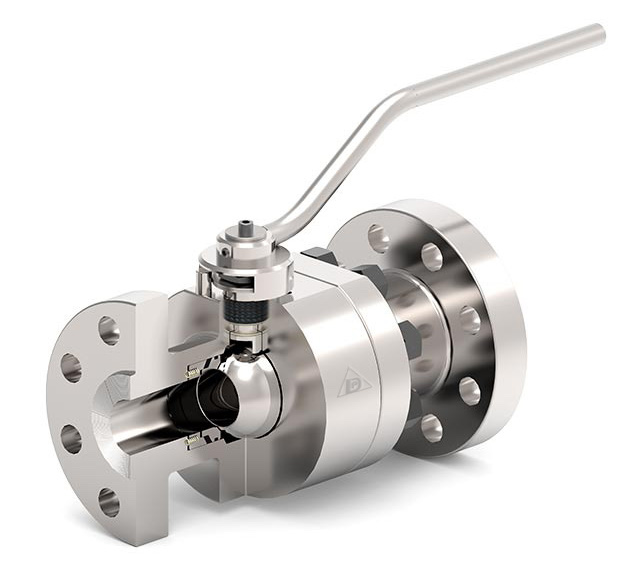

Design Features:
- Two-piece and three-piece split body designs
- Description: Bolted bonnet body, Side entry, Trunnion mounted ball, Fire safe, Anti-static, and anti-blowout stem design
- Emergency injection
- Self-relieving seat effect function
- Seat function DBB. DIB-1. DIB-2
- Soft sealing and metal to metal sealing
- Metal to metal design
- Connection: Flange (RF. FF. RTJ) or Butt Weld (BW)
Operation:
- Manual (Lever or Gearbox)
- Actuator (Motor, Pneumatic, Hydraulic, Pneu-Hydraulic, Gas over Oil)
