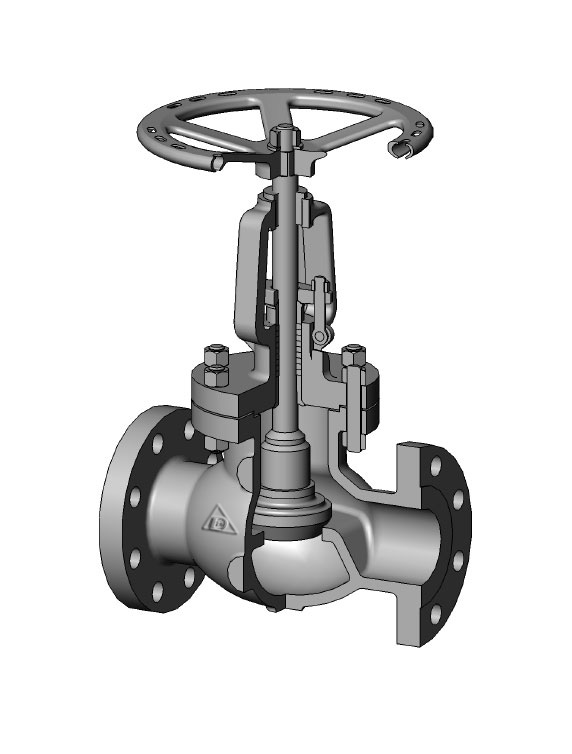

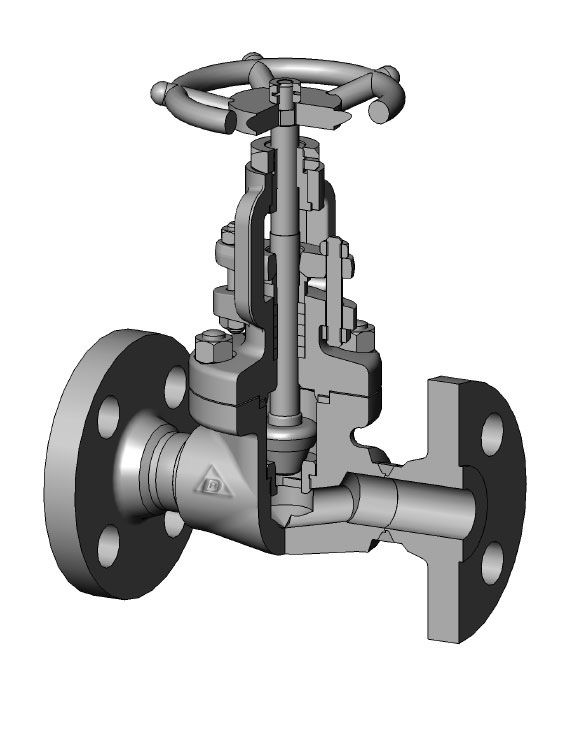

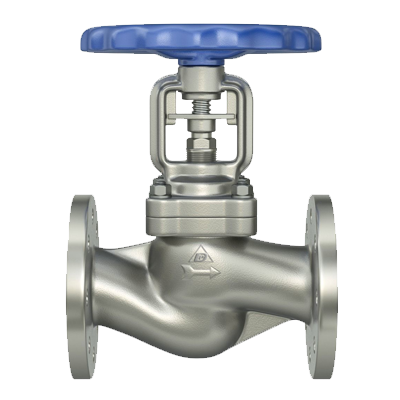

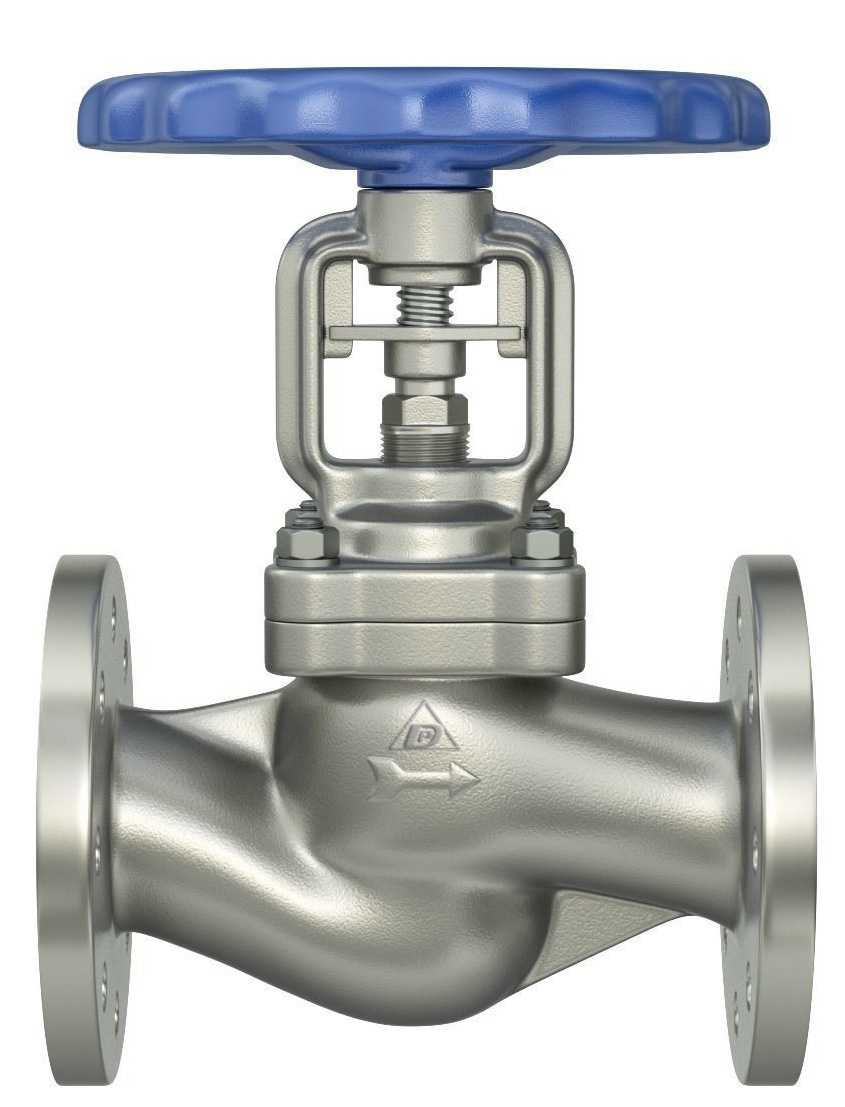

GLOBE VALVE



Manufacturing Standards:

  • Standards: API, BS, MSS, ASME, ASTM
  • Design: BS1873, ASME B16.34
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimension: ASME B16.10
  • Flanged Ends: ASME B16.5 (up to 24”)
  • Butt Weld Ends: ASME B16.25
  • Pressure Test: API 598

Manufacturing Range:

  • Rating: 150 Lbs. to 900 Lbs.
  • Size: 1/2” to 24”
  • Applicable Temperature: -46℃ to 560℃

Body Material:

  • Carbon steel: ASTM A216 WCA WCB WCC, ASTM A352 LCA LCB LCC
  • Stainless steel: ASTM A351 CF8 CF8M CF3 CF3M, ASTM A217 CA15
  • Alloy steel: ASTM A217 WC6 WC9 C12

Design Features:

  • Description: Bolted bonnet body
    • OS&Y, lifting stem
    • Back seal design
    • Sealing surface weld satellite or Tungsten carbide
  • Connection: Flange (RF. FF. RTJ) or Butt Weld (BW)

Operation:

  • Manual (Lever or Gearbox)
  • Actuator (Motor, Pneumatic, Hydraulic)
