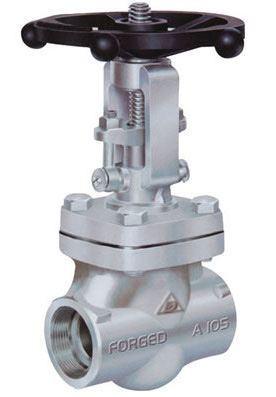

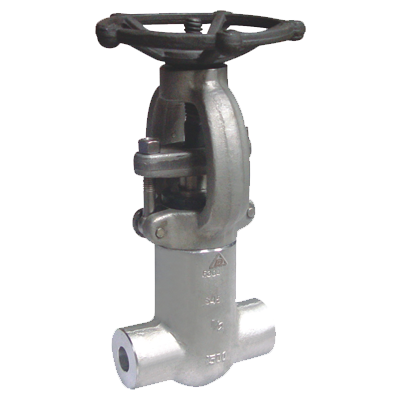

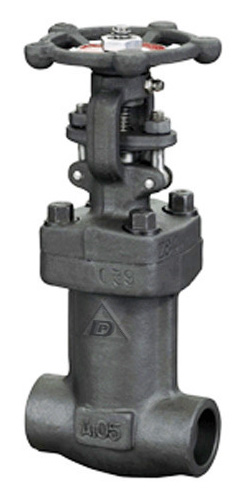

GATE VALVE



Manufacturing Standards:

  • Design: API 600
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimension: ASME B16.10
  • Flanged Ends: ASME B16.5 (up to 24”) ASME B16.47 (above 26”)
  • Butt Weld Ends: ASME B16.25
  • Pressure Test: API 598

Manufacturing Range:

  • Rating: 150 Lbs. to 2500 Lbs.
  • Size: 2” to 76”
  • Applicable Temperature: -46℃ to 560℃

Body Material:

  • Carbon steel: ASTM A216 WCA WCB WCC, ASTM A352 LCA LCB LCC
  • Stainless steel: ASTM A351 CF8 CF8M CF3 CF3M, ASTM A217 CA15
  • Alloy steel: ASTM A217 WC6 WC9 C12

Design Features:

  • Description: Bolted bonnet body
    • OS&Y, lifting stem
    • Flexible wedge
    • Double-disk Gate
    • Back seal design
    • Hard alloy sealing surface
  • Connection: Flange (RF. FF. RTJ) or Butt Weld (BW)

Operation:

  • Manual (Lever or Gearbox)

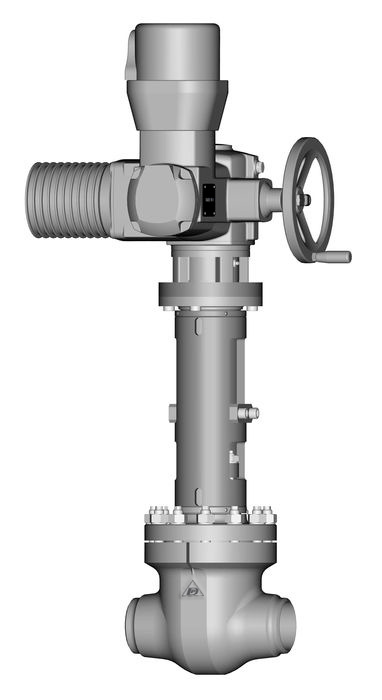

  • Actuator (Motor, Pneumatic, Hydraulic, Pneu-Hydraulic, Gas over Oil)
