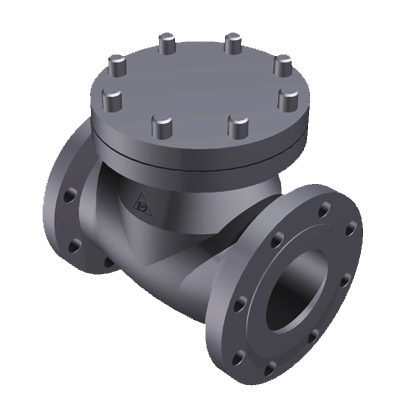

CHECK VALVE



Manufacturing Standards:

  • Standard: API, BS, MSS, ASME, ASTM
  • Design: BS1868, ASME B16.34
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimension: ASME B16.10
  • Flanged Ends: ASME B16.5 (up to 24”) ASME B16.47 (above 26”)
  • Butt Weld Ends: ASME B16.25
  • Pressure Test: API 598

Manufacturing Range:

  • Rating: 150 Lbs. to 900 Lbs.
  • Size: 2” to 64”
  • Applicable Temperature: -46℃ to 560℃

Design Features:

  • Description: Bolted bonnet

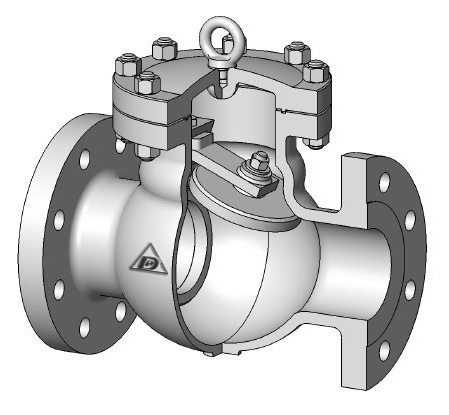

    • Swing disc
    • Hard alloy sealing surface
    • Optional external lever and weight
    • Optional setting buffer tank, smaller shut down impact
  • Connection: Flange (RF. FF. RTJ) or Welded (SW)

Operation:

  • Actuator (Hydraulic Damper)
